The sad state of font rendering on Linux

Preamble

As it turns out, font rendering is a highly controversial topic. If you don’t see anything wrong with Linux font rendering, please disregard this as a shitpost. Thanks.

I spent the first 25 years of my life on Windows and therefore I am biased towards Windows font rendering with ClearType. I also agree with research which suggests that this rendering approach makes reading easier on the eyes. There are also some facts you can’t argue with, such as non-linear rendering without anti-aliasing looking awful.

With that out of the way, let’s proceed.

Basic concepts

Fonts are vector data that gets rasterized when displayed to the user. Computer displays are low-DPI devices for complex reasons, and such DPI (96) is not enough to display fonts without a myriad of trade-offs. Most notable are sub-pixel rendering, sub-pixel positioning, font hinting and anti-aliasing. You can read up more here and here if you want the full background.

Each operating system approaches font rendering differently. To get Windows-like rendering that I prefer, anti-aliasing, sub-pixel rendering, sub-pixel positioning and font hinting based on byte code embedded into fonts - basically, every step of the technological progress made in the last 30 years - need to be active.

Windows implementation

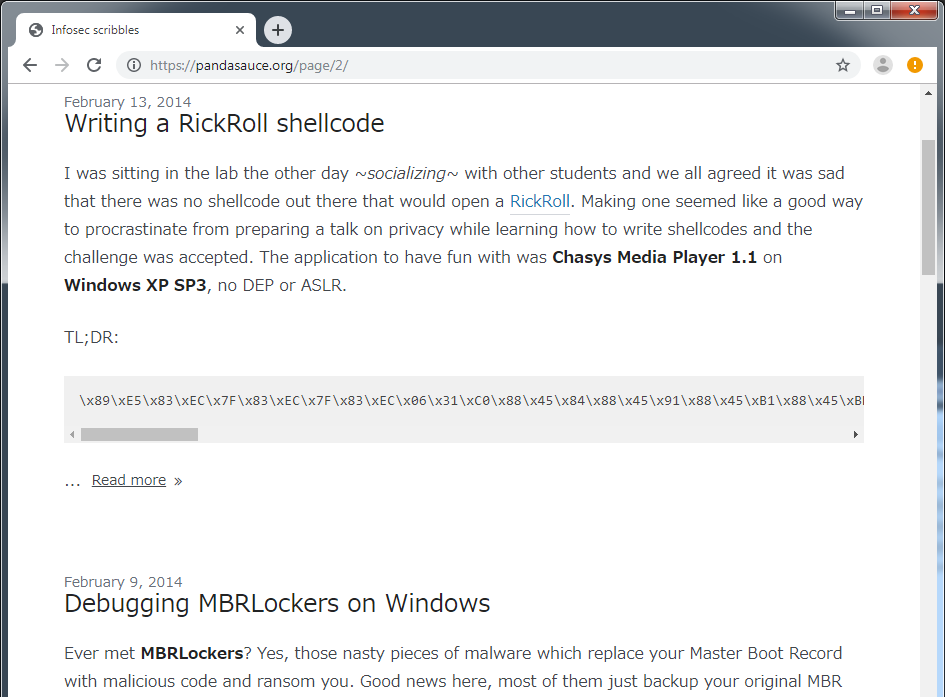

Simply put, Windows uses every font rendering improvement technology available and goes a step further to use fonts specifically designed to look great when combined with this technology. It is state of the art and then some.

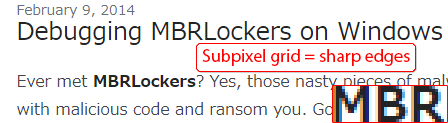

One obvious thing you can see on the zoomed in part of the image is that black and white text is not actually black and white on Windows 7. Since sub-pixel rendering relies on toggling red, green and blue parts of a single pixel, it introduces colour fringing. A small percentage of people can see so well, that they actually notice this when reading. They can disable this feature at the cost of less sharp fonts or migrate to Windows 8 or newer.

Windows font rendering keeps changing with every new version of the OS. Windows 7 had the sharpest fonts, while from Windows 8 onwards Microsoft went back to grayscale font smoothing, resulting in blurrier fonts without colour fringing. This is how FreeType code in /include/freetype/ftdriver.h documents Windows font rendering evolution over time:

GETINFO framework version feature
3 GDI (Win 3.1), v1.0 16-bit, first version
TrueImage
33 GDI (Win NT 3.1), v1.5 32-bit
HP Laserjet
34 GDI (Win 95) v1.6 font smoothing,
new SCANTYPE opcode
35 GDI (Win 98, 2000) v1.7 (UN)SCALED_COMPONENT_OFFSET
bits in composite glyphs
36 MGDI (Win CE 2) v1.6+ classic ClearType
37 GDI (XP and later), v1.8 ClearType
GDI+ old (before Vista)
38 GDI+ old (Vista, Win 7), v1.9 subpixel ClearType,
WPF Y-direction ClearType,
additional error checking
39 DWrite (before Win 8) v2.0 subpixel ClearType flags
in GETINFO opcode,
bug fixes
40 GDI+ (after Win 7), v2.1 Y-direction ClearType flag
DWrite (Win 8) in GETINFO opcode,
Gray ClearType

I don’t see colour fringing, so my preference is 39/DWrite/v2.0 rendering of Windows 7.

OS X implementation

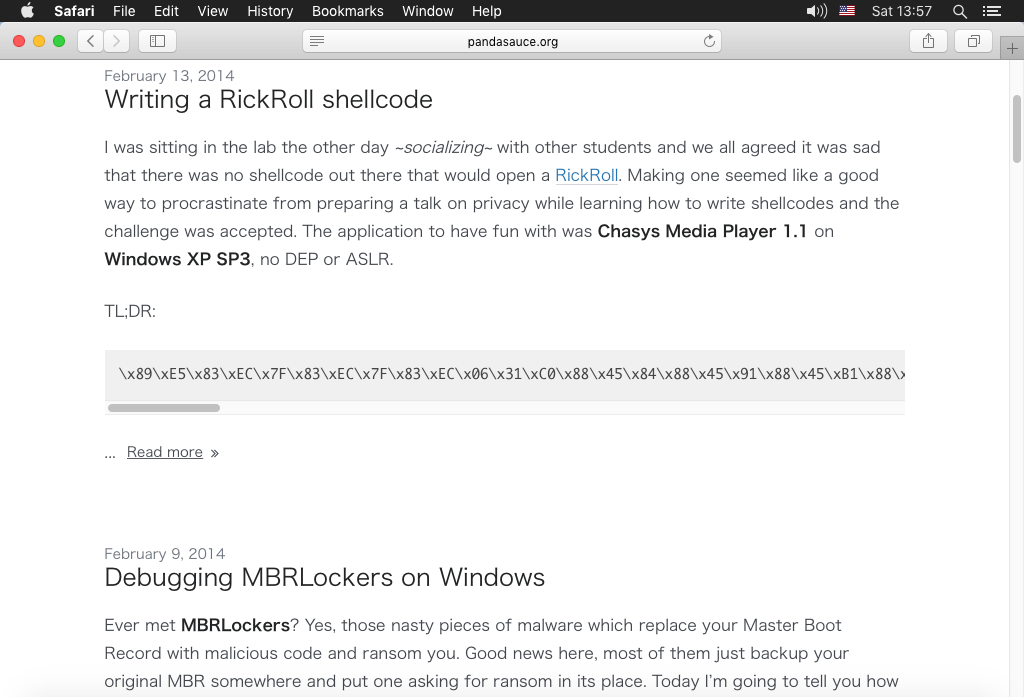

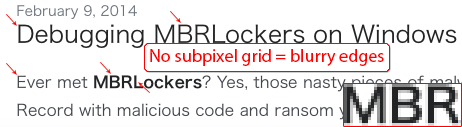

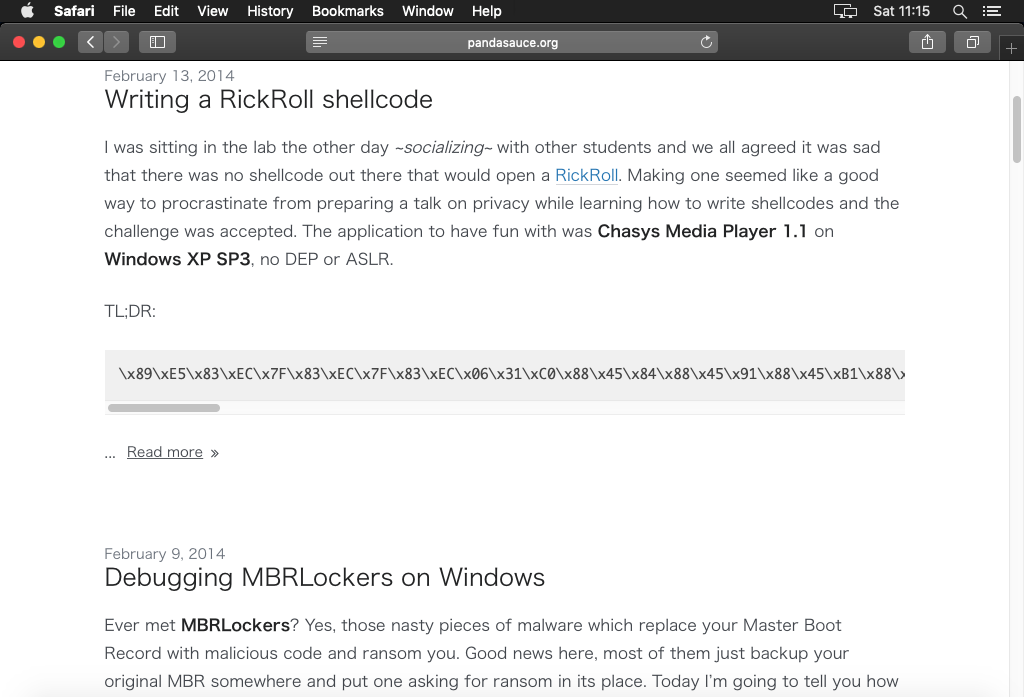

OS X objectively has the absolute worst font rendering. It does not use hinting at all and relies only on grayscale anti-aliasing. This makes everything appear very bold and blurry:

There is not even a hint of any linearity in the rendering either, thickness is all over the place even within a single glyph, with different strokes “sticking” together because of the lack of pixels:

This distracts your subconsciousness and wastes attention on just recognizing glyphs and their edges, resulting in massive eye strain. Don’t believe me? Do a controlled reading speed experiment against Windows.

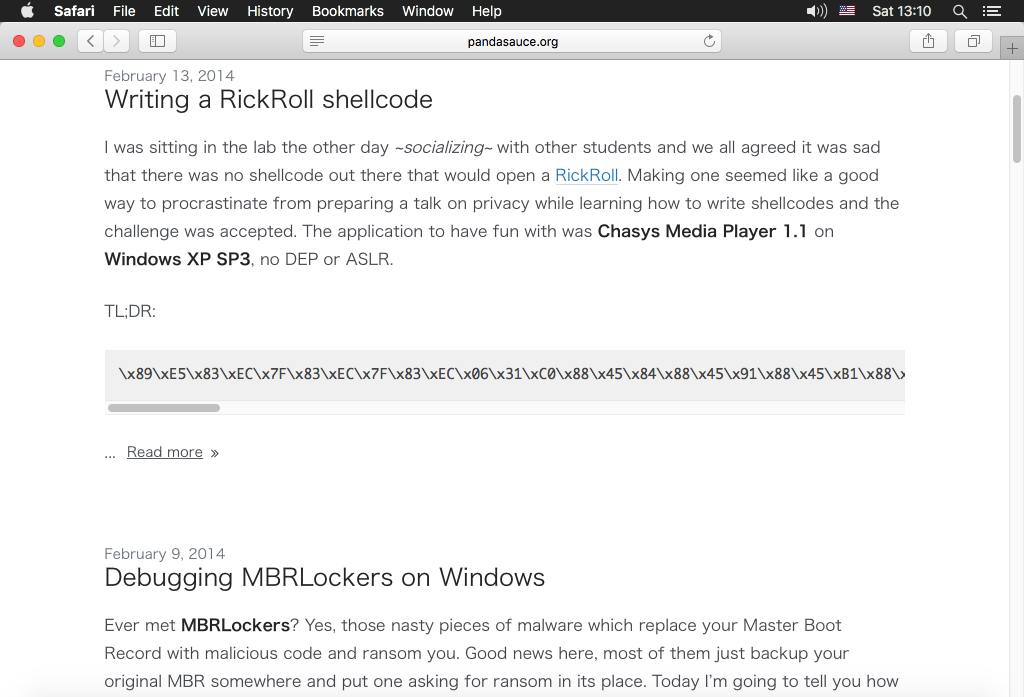

This occurs because Apple didn’t dare go near any ClearType patents that Microsoft got for their rendering techniques. For decades OS X remained a very ugly baby, until in 2015 they just gave us courage HiDPI in form of Retina. This was a bid to make all hinting technology obsolete and put everyone else to shame.

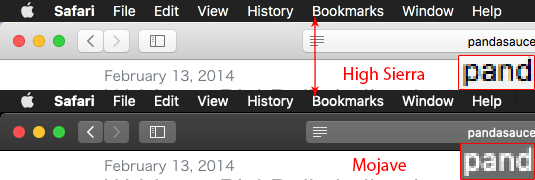

What they didn’t account for is that an overwhelming majority of legacy software had 96 DPI hardcoded into it, as well as the problem of mixed use of HiDPI and non-HiDPI displays where you need to somehow scale the entire UI back-and-forth when moved between displays. Since Windows never had the font rendering problems that Apple did, majority of the computer market share didn’t back the ultra-expensive 4K screens even to this day (2018). Software maintainers too didn’t buy into the idea of massive code rewrites and UI tinkering to support DPIs other than 96. As of today, 4K experience is still a mixed bag that solves one simple problem for Apple, but introduces multiple complex problems for everyone else.

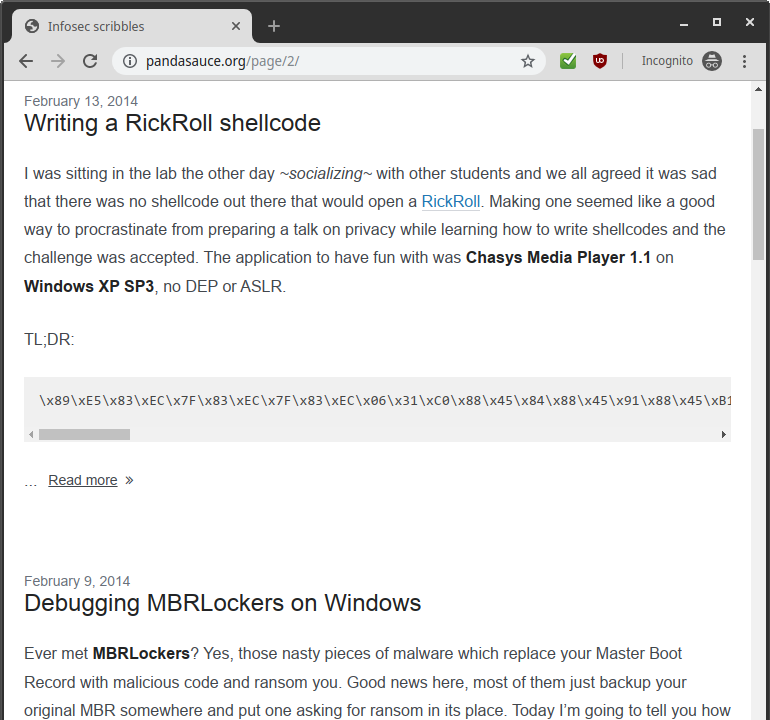

Linux implementation

Linux distros use the FreeType library for rendering fonts. FreeType comes with 3 different engines for interpreting TrueType hinting instructions: v35, v38, v40. It also includes an autohinter (a.k.a. autofitter), which ignores the byte code instructions embedded into the fonts and tries to hint fonts automatically.

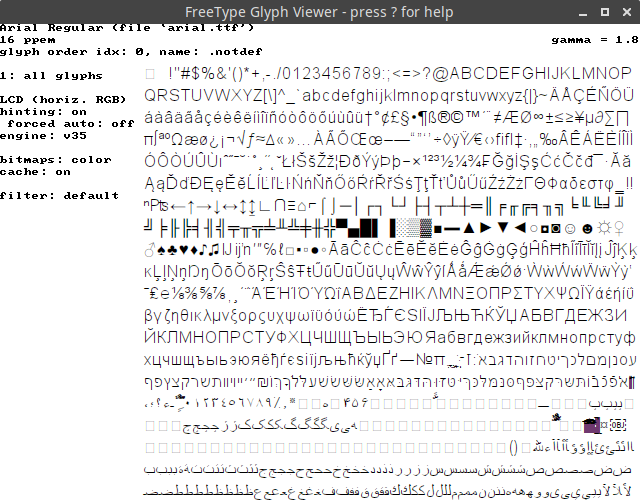

v35 is the legacy engine that is used by default on more risk-averse distros, notably RHEL derivatives. Usually it is compiled without the use of any patent-infringing technologies. It used to be the default in the mainline code base before v40 came around. This is what it looks like:

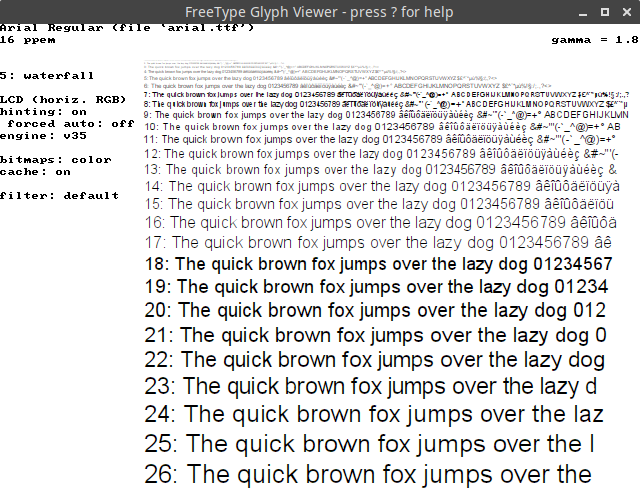

While it looks fantastic on the first image, once you put different font sizes next to it on the second image, you can immediately see the problem with this engine.

v38 is the “Infinality” engine. Infinality was a set of patches for earlier versions of FreeType that focused on ignoring patent issues and just getting the best possible font rendering in. Some of those were merged into mainline FreeType, but not enabled by default. The author of the patches eventually vanished and I can’t vouch for how much of it is in and how actively it is maintained by the man behind FreeType. This is what it looks like:

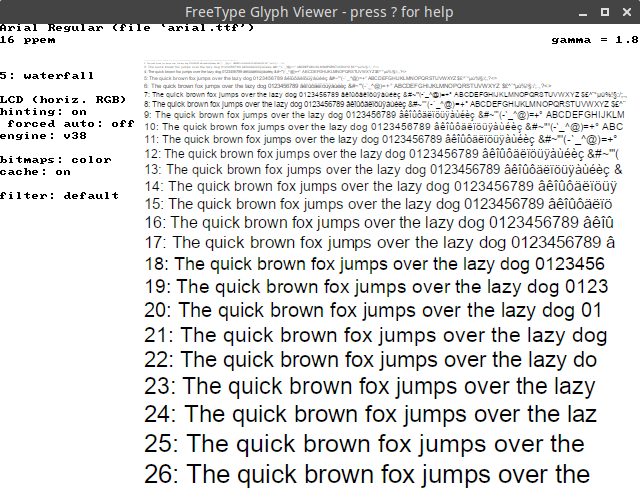

It is somewhat less sharp, but more smooth. The issues on the second image are less apparent, but still very obviously there.

There is widespread criticism stating that font rendering is visibly slower on v38 because of all those patches, supported by this post on FreeType website. I couldn’t find any profiling with comparisons and for the life of me I can’t see the visibly slower rendering.

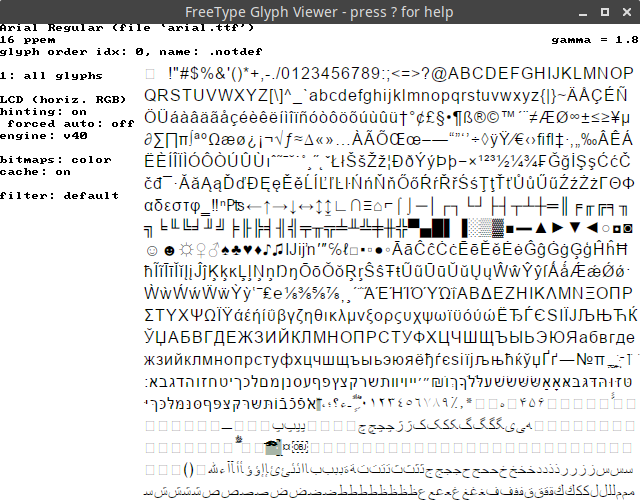

v40 is the new engine, based on stripped down Infinality code, as described in the same blog post. This engine uses Microsoft patented technology where the patents have expired and is usually compiled with patent infringing code activated. This is what it looks like:

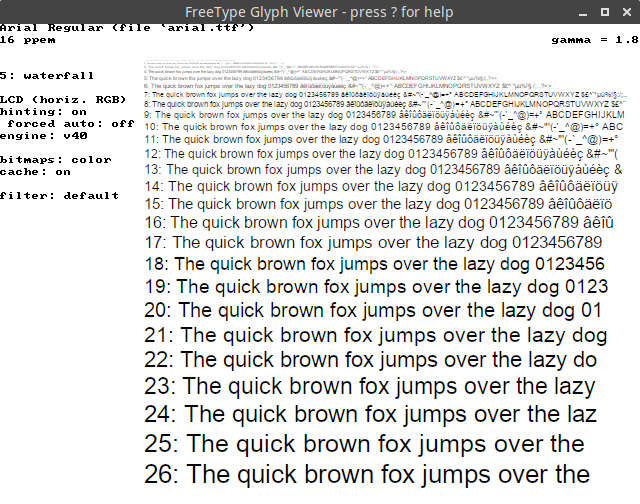

There are some differences if you compare pixel by pixel and obviously the kerning is different.

Ubuntu also enables other seemingly patented technologies disabled by default in FreeType: sub-pixel rendering and “GX/AAT table validation”. You can read more about the patents in David Turner’s blog post, but I haven’t noticed any impact of table validation code on the fonts that I see every day.

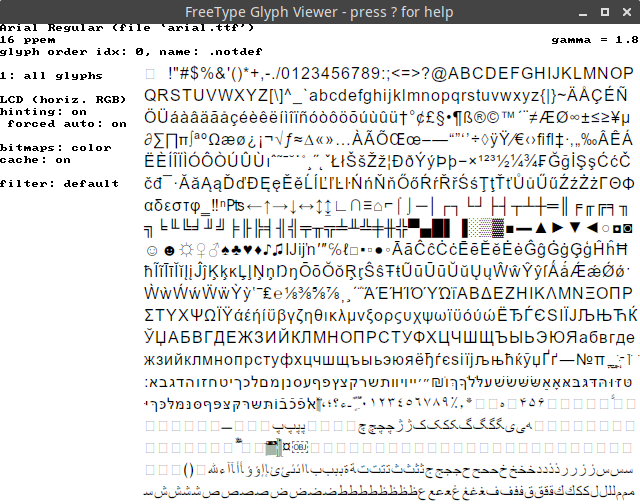

Finally, the autohinter:

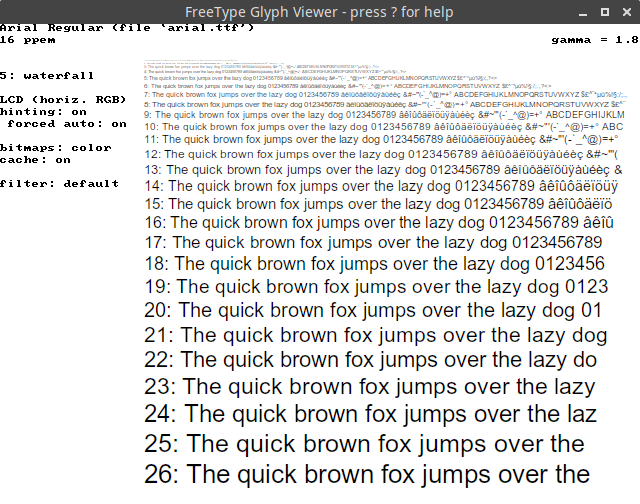

Thickness linearity between font sizes on the second image is fantastic. But compare the overall thickness at standard web font size (16px) to any other option and you will see that this comes at the cost of making everything bold by default:

It is also very easy to tell which option is the most blurry and difficult to read on this image.

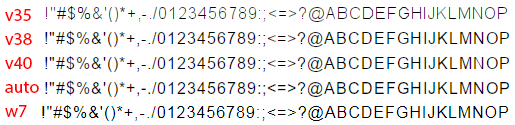

With all these side-by-side, my preferred Linux option is v38 engine. In less perfect conditions (e.g. non black-and-white text), v40 seems easier on the eyes.

Funnily enough, in my adventures I learned that some people prefer the fuzzy and blurry rendering of OS X defaults on Windows. They found a way to replace the Windows rendering engine with FreeType for this purpose and the tool is called MacType. Since FreeType is highly configurable, it allows you to disable hinting and mimic OS X approach to rendering fonts. You will see below why this actually makes for a worse user experience without even talking about stability issues that this is bound to introduce.

Some users even disable all ClearType rendering and anti-aliasing, claiming that it reduces eyestrain and that anti-aliasing damages eyesight. It’s kind of like anti-vaxxing (hello from 2019 if you are reading this in the future).

The ugliest part

With current state of Linux, it does not matter which engine you pick. They all are broken in the same way:

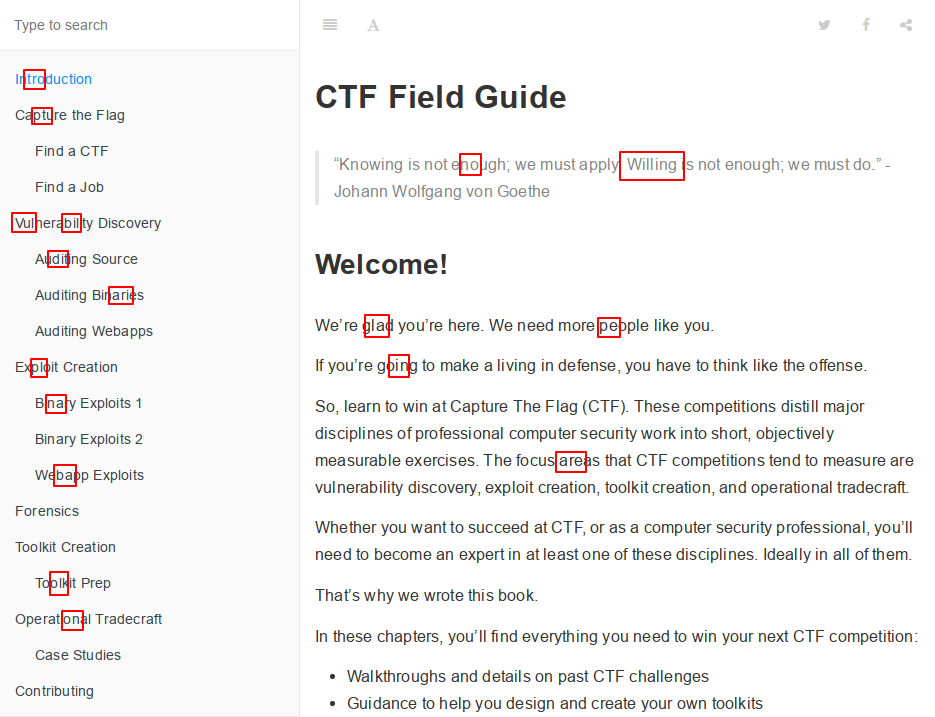

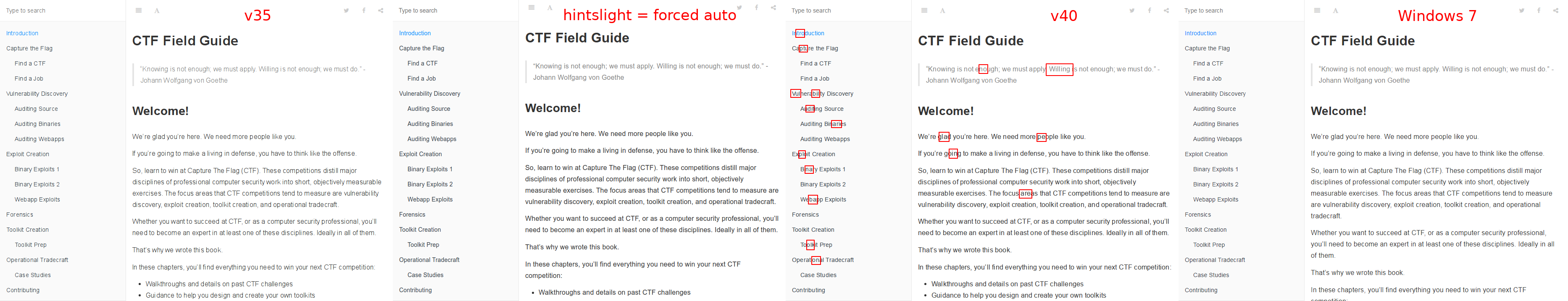

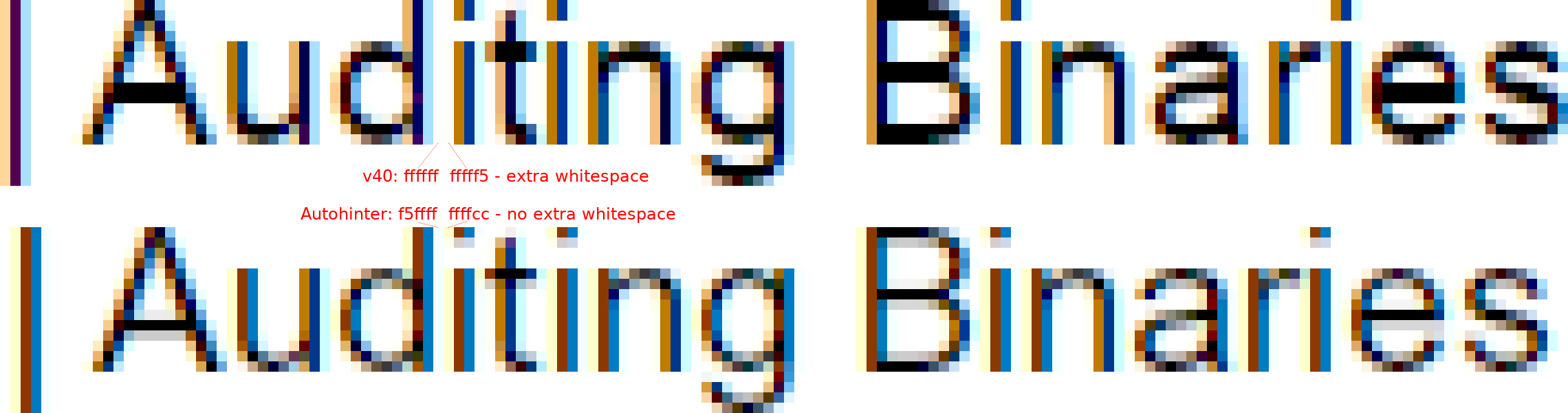

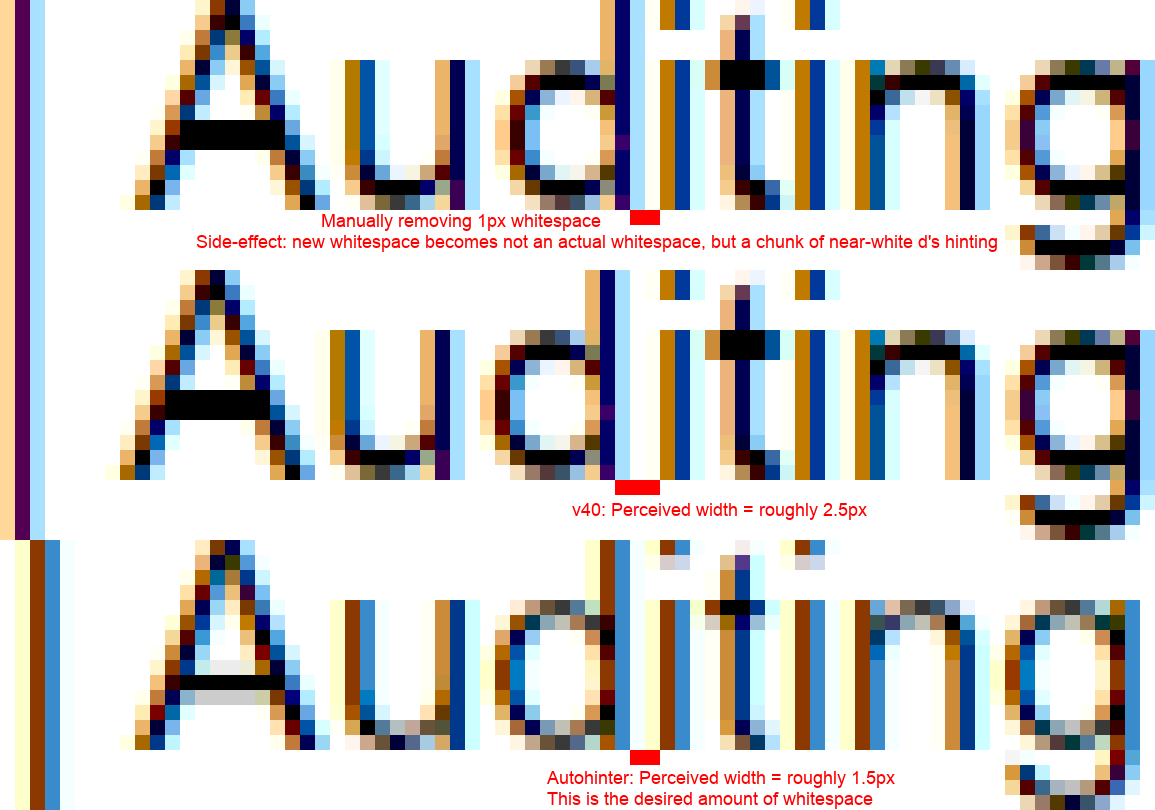

There is a pixel or less of extra space between kerning pairs and the problem grows exponentially when letter-spacing values are fiddled with:

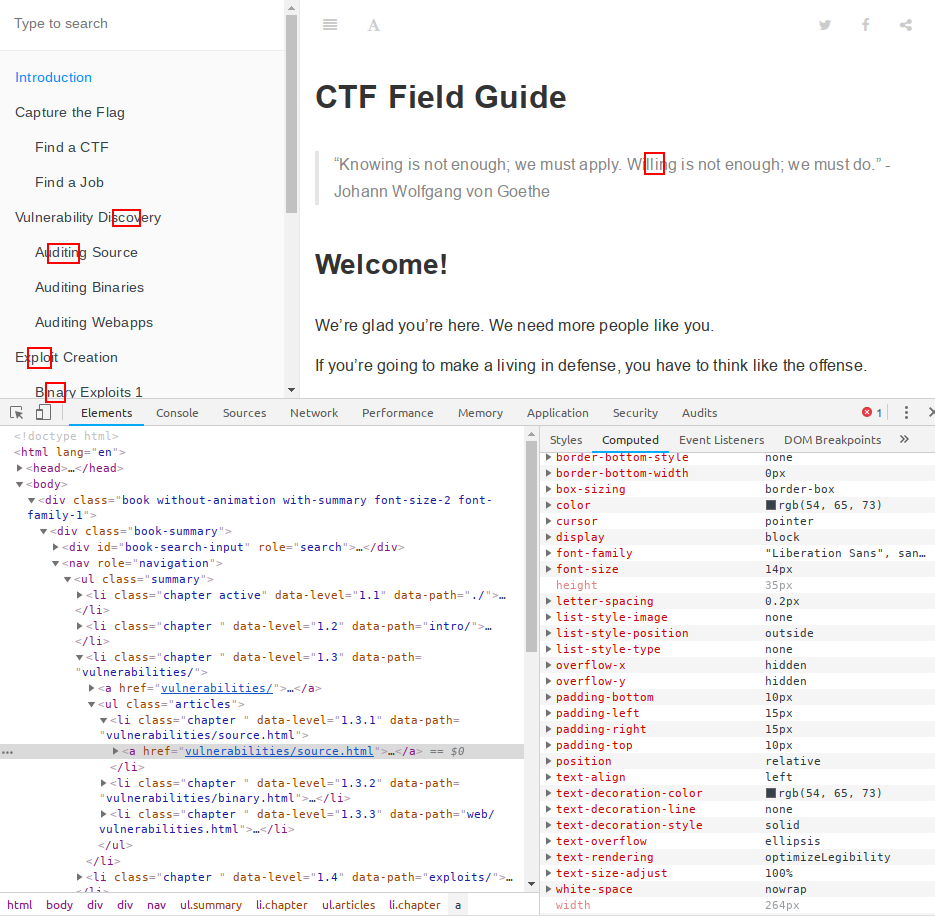

Before someone jumps in and says “stop using Microsoft fonts”, here is the exact same behaviour exhibited when rendering Liberation Sans, the font most commonly recommended to replace standard web ones:

This is because for a very long time Linux did not support the sub-pixel grid at any level and a lot of assumptions were made. One of such assumptions was that glyph positions have to be whole integers, and those integers were mapped to whole pixels. Of course, with sub-pixel rendering that is no longer the case, so poor rounding decisions result in what you see above.

The solution to this is to position glyphs with sub-pixel precision. The problem with this is that Google’s Skia is the only rendering library that supports it, and even there it is disabled by default. I am maintaining a gist with binary patches for Chrome until my proposal to enable it gets accepted upstream, but it doesn’t help with the rest of the system.

More about it can be read in Behdad Esfahbod’s whitepaper on linear rendering. He also documented how to fix it back in 2008, and the amount of effort required pretty much meant that we may be stuck with it forever. GTK maintainers attempted to pick this up recently, but it broke some tests that they could not quite figure out and thus Cairo team ignored the patch.

On top of subpixel positioning, we have this kind of bullshit weird behaviour in some programs, and that has nothing to do with sub-pixels:

At this point, I give up. Font rendering on Linux is broken, very few people care, and those that do (like myself) are too busy with our day jobs to figure out all the prerequisite knowledge needed to fix it, let alone actually fix it.

Extras

Whichever broken engine you go with, there will be a few more things to address.

Fontconfig

On top of FreeType there is the fontconfig configuration layer that allows to toggle the technologies mentioned above on or off for different fonts, their size ranges and so on. Technically, you could have two completely opposite settings for two different font sizes or weights of the same font. You can read the official docs for the full details.

Microsoft Fonts

When you are browsing the internet, a lot of websites make implicit assumptions about your default fonts. If you are coming from the Windows world, a lot of websites will look weird to you and page rendering may be downright broken if the fonts are missing from your system, e.g. plain text files opened in Chrome will have overlapping lines. To fix it, you need to get Windows fonts installed.

The traditional way of achieving this is through installing ttf-mscorefonts-installer or msttcorefonts. The msttcorefonts package looks like some Shenzhen basement knockoff that renders poorly and doesn’t support Unicode. I suspect that these fonts have gone through multiple iterations in every Windows release and that the versions available through the repositories must be from around Windows 95 days.

Try generating some Zalgo and see the empty boxes for yourself. These are not the same fonts included in your Windows installation. If you have these packages installed, ditch them prior to continuing.

The workaround is to grab the fonts from your Windows installation. I Am Not A Lawyer and if you are worried about this going against Microsoft licensing, get legal advice. I just know that it would be illegal for me to provide you with the files, therefore: the fonts are available in C:\Windows\Fonts. You need the following files:

arialbd.ttf   ARIALNB.TTF  ariblk.ttf    consolai.ttf  courbi.ttf    georgiai.ttf  segoeprb.ttf  segoeuib.ttf  segoeuiz.ttf  timesbi.ttf   trebucbi.ttf  verdanai.ttf
arialbi.ttf   ARIALNI.TTF  comicbd.ttf   consola.ttf   couri.ttf     georgia.ttf   segoepr.ttf   segoeuii.ttf  tahomabd.ttf  timesi.ttf    trebucit.ttf  verdana.ttf
ariali.ttf    ARIALN.TTF   comic.ttf     consolaz.ttf  cour.ttf      georgiaz.ttf  segoescb.ttf  segoeuil.ttf  tahoma.ttf    times.ttf     trebuc.ttf    verdanaz.ttf
ARIALNBI.TTF  arial.ttf    consolab.ttf  courbd.ttf    georgiab.ttf  impact.ttf    segoesc.ttf   segoeui.ttf   timesbd.ttf   trebucbd.ttf  verdanab.ttf  webdings.ttf

Depending on how you access that directory, you may have to copy the files based on font family names:

  • Arial
  • Comic Sans MS
  • Consolas
  • Courier New
  • Georgia
  • Segoe UI
  • Times New Roman
  • Trebuchet MS
  • Impact
  • Verdana
  • Webdings

The files go in /usr/share/fonts/MAKE_UP_A_FOLDER_NAME.

GIMP

If you use GIMP, you may notice weird artifacts in the Text Tool. Create /etc/gimp/2.0/fonts.conf:

<fontconfig>
  <match target="font">
    <edit name="rgba" mode="assign">
      <const>none</const>
    </edit>
  </match>
</fontconfig>

Noto Font

Noto font family is an excellent font that supports all the different languages and symbols. It generally provides a better experience on Linux than the standard Microsoft fonts, without looking too different. It comes in sans, serif and monospace editions, which covers all the OS needs. Install it like this:

$ sudo apt install fonts-noto

Tweak Tool

  • Hinting: Slight, which translates to “autohint”. I use it because it exhibits the advance widths rounding bug in kerning pairs the least. I override this for Ubuntu Mono and force it to use v40 full hinting. I manually patch every binary release of Chrome to force full hinting and subpixel positioning, as that is my second most used application after a text editor and a terminal.
  • Anti-aliasing: Subpixel
  • Window Titles: Noto Sans UI Regular 11 or Noto Sans Display Regular 11 (renamed in newer versions)
  • Interface: Noto Sans UI Regular 10 or Noto Sans Display Regular 10 (renamed in newer versions)
  • Documents: Noto Serif Regular 11
  • Monospace: Noto Mono Regular 13

Application Settings

I find that different applications render best with certain font sizes set. Most likely, this is because it forces the least broken glyph form in absence of subpixel positioning which would give me a non-broken glyph.

Here they are:

  • Terminator: Ubuntu Mono 13.5
  • Sublime Text: Ubuntu Mono 13.4, padding-top 4, padding-bottom 4
  • IntelliJ: Ubuntu Mono 18, line height 1.4

Conclusion

I can rant endlessly about how annoying it is that I had to spend my time figuring out all this just to get things to work the way they should work out of the box and still end up hitting a brick wall. Certainly I would prefer to do something more useful or relaxing. Then again, nobody forces anyone to use FOSS. If you are happy with Windows 10 or OS X (I am not), I strongly recommend that you stick with it instead of using Linux. It’s just a reasonable thing to do.
